PARABOLA XP 5 GHz 27 dBi antenna MIMO

Untitled Document

   Antenna designed for systems operating in MIMO and NSTREME technologies. BP-50PAX-27-MIMO antenna is a very high efficient directional antenna designed to be used in far distance radio bridges. The antennas bowl is made from powder-painted aluminium, and zinced steel mast handle allows azimuth and rotation adjustment. Antenna radiator is made using microstrips technology.

Minimum order quantity: 5 pcs.

PARABOLA XP 5 GHz 27 dBi antenna MIMOPARABOLA XP 5 GHz 27 dBi antenna MIMO


 Installation manual




Product details:


Model BP-50PAX-27-MIMO
Gain 27 dBi
Operating frequency 5.0-6.1GHz
Vertical beam width 4.5 degrees
Horizontal beam width 4.5 degrees
Impedance 50 Ohm
Connector 2 x RP-SMA
VSWR 1.4
Dimensions bowl diameter: 500 mm
Weight 1.4 kg
Polarization vertical or horizontal
Standard Fully compatibile with IEEE 802.11x
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

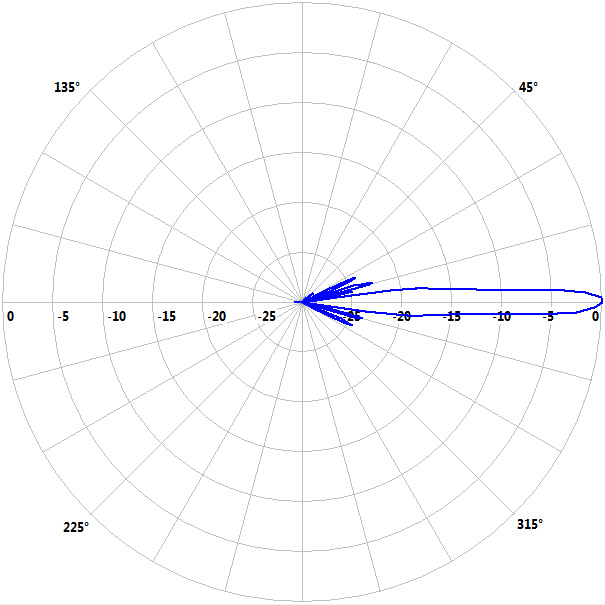

Radiation patterns:
Azimuth H Elevation H
Azimuth V Elevation V

Price: 195.00 PLN / pcs  Price: 44.32 € / pcs    Add to the basket.
