PANEL ULTRA 5 GHz 27 dBi antenna MIMO

Untitled Document

   The panel antenna recommended to use with MIMO and NSTREME DUAL. The microstrip antenna for horizontal, vertical and diagonal (-/+45 degrees) linear polarizations. The antenna is made from the very best materials, weather-proof, rain-tight. Perfect as a wireless bridge antenna and as a client antenna in places where important signal gain is needed, it offeres steady and stable signal on large distances. Mountig directly to mast, allows azimuth corrections. The antenna can be used as a substitute for PARABOLA antennas.
PANEL ULTRA 5 GHz 27 dBi antenna MIMO



Product details:
Model BP-50PL-27-MIMO
Gain 27 dBi
Operating frequency 5.0 - 6.0 GHz
Vertical beam width 6 degrees
Horizontal beam width 6 degrees
Impedance 50 Ohm
Connector 2 x N (f) socket
(optionally 4.3-10 (f) socket)
VSWR 1.3
Dimensions 690 / 690 / 38,1 mm
Weight 6.27 kg
Polarization vertical/horizontal (both), diagonal -45/+45 degrees (both)
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).
Wind load frontal: 833 N (at 125 mph)
rearside: 761 N (at 125 mph)
lateral: 29 N (at 125 mph)
Radiation patterns:
Azimuth H Elevation H
Azimuth V Elevation V

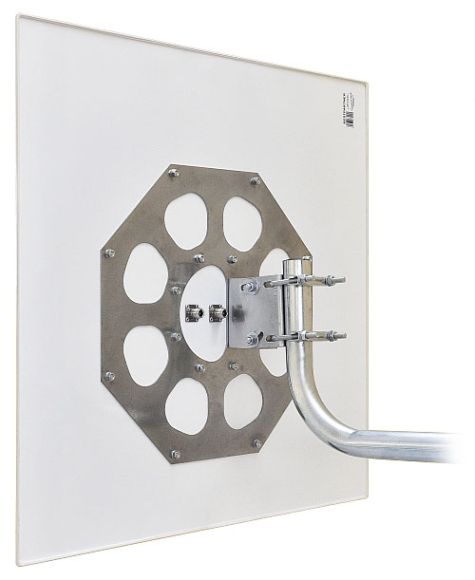

PANEL ULTRA 5 GHz 27 dBi antenna MIMO PANEL ULTRA 5 GHz 27 dBi antenna MIMO

Price: 782.00 PLN / pcs  Price: 177.73 € / pcs    Add to the basket.
