VECTOR 20 dBi 5 GHz MIMO - 90 antenna

Untitled Document

Sector antenna VECTOR MINI MIMO is characterized by small dimensions and high gain. The panel antenna recommended to use with MIMO and NSTREME DUAL. It is recommended as a substitute for the VECTOR MIMO antenna, when use of bigger aerial is impossible. The bottom of the antenna is made of powder painted aluminium, and the casing is made from UV-proof PVC material. Mounting allows azimuth correction and full rotation for easy antenna setup.

Product details:

Model	BP-50VR-20-MIMO
Gain	20 dBi
Operating frequency	5.10 - 6.0 GHz
Vertical beam width	5.5 degrees
Horizontal beam width	90 degrees
Impedance	50 Ohm
Connector	2 x N(F) socket
VSWR	1.4
Dimensions	740 / 180 / 60 mm
Weight	2.22 kg
Polarization	horizontal / vertical (both)
Standard	Full compatibility with IEEE 802.11x
Mounitng	Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

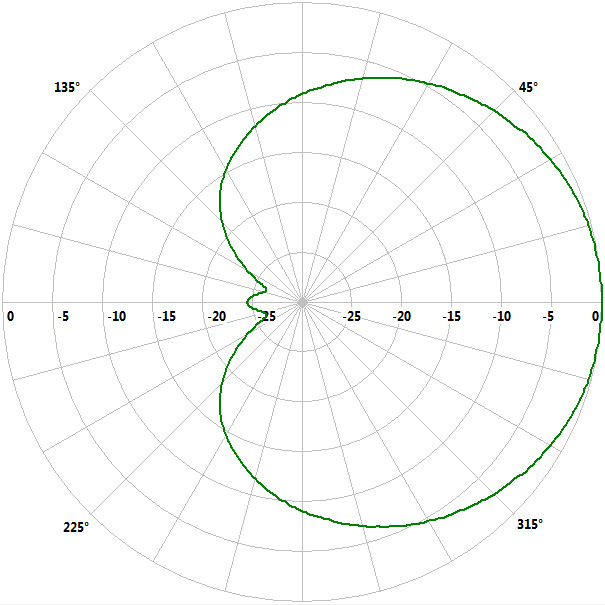

Radiation patterns:


Azimuth H	Elevation H

Azimuth V	Elevation V

Price: 257.00 PLN / pcs Price: 58.41 € / pcs

Add to the basket.
