PANEL ULTRA 25 dBi UMTS 1900-2160

Untitled Document

             This antenna is designed to be used in places where UMTS signal level is to low and doesn't allow correct voice and data transmission through the modem. PANEL ULTRA antenna allows to get better radio signal used in UMTS(G3) transmission 1900-2100 MHz. Using the antenna connected to the modem allows higher tramission speed due to better signal level and modulation. The antenna was made from the very best materials and is fully weatherproof (humidity, wind, UV). The PANEL ULTRA antenna has an advanced mounting system, which allows easy azimuth and horizont correction.

Notice! To cooperate with GSM networks, the antenna should be set in vertical polarization!

Check also : UMTS pigtails antenna - modem

PANEL ULTRA 25 dBi UMTS 1900-2160




Technical specification:
Model BP-UMTSPL-25
Gain 25 dBi
Frequency 1900 - 2160 MHz
Vertical beam width 8 degrees
Horizontal beam width 8 degrees
Impedance 50 Ohm
Connector N(f) socket
(optionally 4.3-10 (f) socket)
VSWR 1.3
Dimensions 690 / 690 / 38,1 mm
Weight 6.27 kg
Polarization vertical, horizontal, diagonal (45 degrees)
Standards Full compatibility with UMTS
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).
Wind load frontal: 833 N (at 125 mph)
rearside: 761 N (at 125 mph)
lateral: 29 N (at 125 mph)

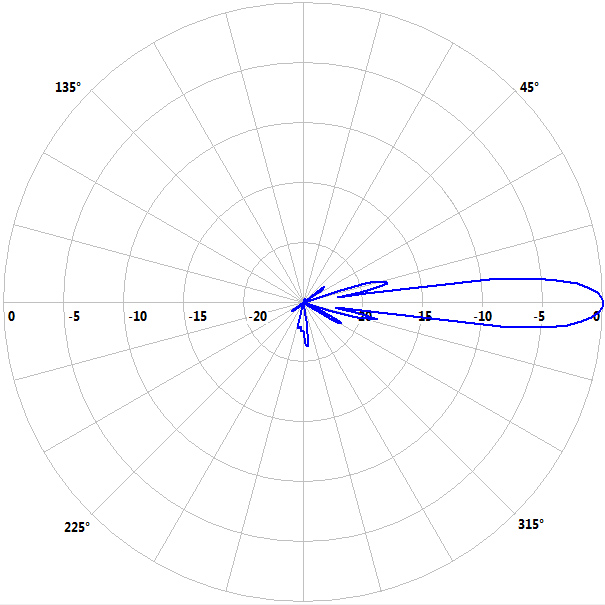

Radiation patterns:
Azimuth Elevation

PANEL ULTRA 25 dBi UMTS 1900-2160 PANEL ULTRA 25 dBi UMTS 1900-2160
PANEL ULTRA 25 dBi UMTS 1900-2160


Price: 782.00 PLN / pcs  Price: 177.73 € / pcs    Add to the basket.
