VECTOR H-PRO 17 dBi 6 GHz - 120 antenna

Untitled Document

The VECTOR H-PRO antenna is made of the finest materials - entirely hermetic. The bottom of the antenna is made of powder painted aluminium, and the casing is made from UV-proof PVC material. Mounting allows azimuth correction and full rotation. Due to it's polarization, VECTOR H-PRO use is recommended in large WiFi aggregation working in vertical polarization for a great noise reduction.

Product details:

Model	BP-60VRH-17
Gain	17 dBi
Operating frequency	5.9 - 6.875 GHz
Vertical beam width	5 degrees
Horizontal beam width	120 degrees
Impedance	50 Ohm
Connector	N(F) socket
VSWR	1.4
Dimensions	740 / 120 / 60 mm
Weight	1.14 kg
Polarization	horizontal
Standard	Full compatibility with IEEE 802.11x
Mounting	Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

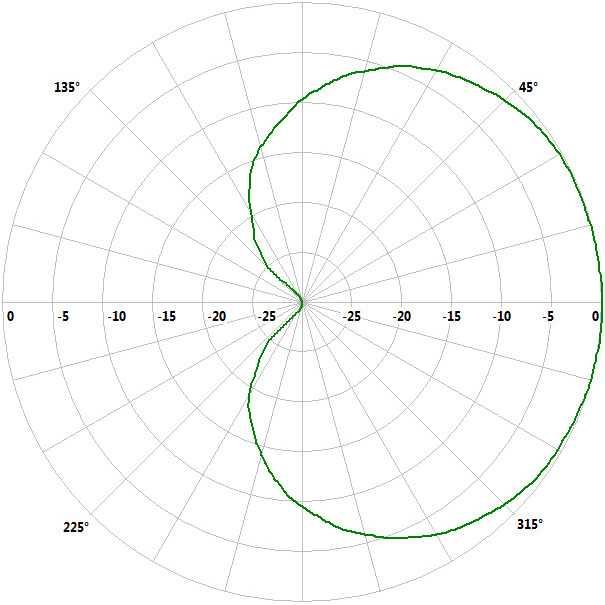

Radiation patterns:


Azimuth	Elevation

VECTOR H-PRO 17 dBi 6 GHz - 120 antenna

Price: 218.00 PLN / pcs Price: 49.55 € / pcs
