Bestpartner » Catalog » VECTOR MINI sector 2.4 GHz antenna 1...

VECTOR MINI sector 2.4 GHz antenna 19 dBi

Untitled Document

The VECTOR MINI gap-sector antenna has very high 19dBi gain characteristics. That model due to it's size is recommended for use in situations when VECTOR XP cannot be used. Made of best materials it provides high durability.

VECTOR MINI sector 2.4 GHz antenna 19 dBi

Product details:

Model	BP-24VR-19
Gain	19 dBi
Operating frequency	2.4 - 2.5 GHz
Vertical beam width	3 degrees
Horizontal beam width	120 degrees
Impedance	50 Ohm
Connector	N (f) socket
VSWR	1.2
Dimensions	920 / 100 / 50 mm
Weight	1.7 kg
Backward radiation	-30 dBi
Polarization	horizontal
Standard	Full compatibility with IEEE 802.11x
Mounting	Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation).

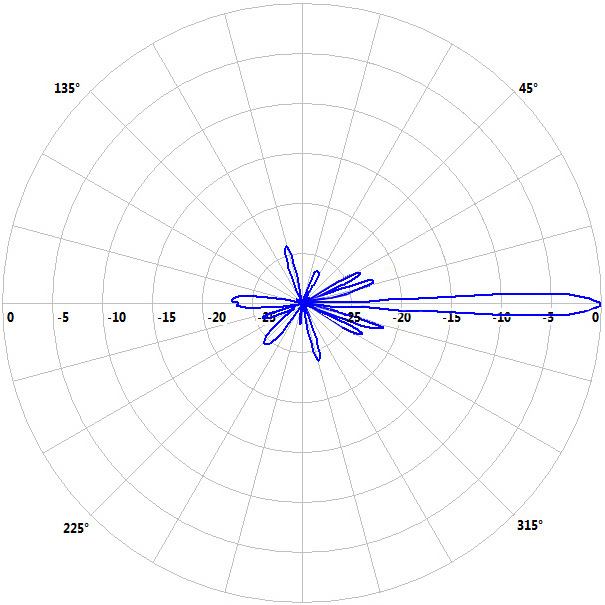

Radiation patterns:


Azimuth	Elevation

Price: 255.00 PLN / pcs Price: 57.96 € / pcs

Add to the basket.
