VECTOR DUAL sector 2.4 GHz antenna 20 dBi

Untitled Document

Antenna designed for the base stations, it has very high 22dBi gain characteristics. It has an semi-uniform signal radiation in horizontal polarization. It works perfectly with the PARTNER antenna.

Product details:

Model	BP-24VR-20
Gain	20 dBi
Operating frequency	2.4 - 2.5 GHz
Vertical beam width	1 degree
Horizontal beam width	360 degrees
Impedance	50 Ohm
Connector	N (f) socket
VSWR	1.2
Dimensions	1450 / 100 / 50 mm
Weight	4.2 kg
Polarization	horizontal
Standard	Full compatibility with IEEE 802.11x
Mounting	Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation).

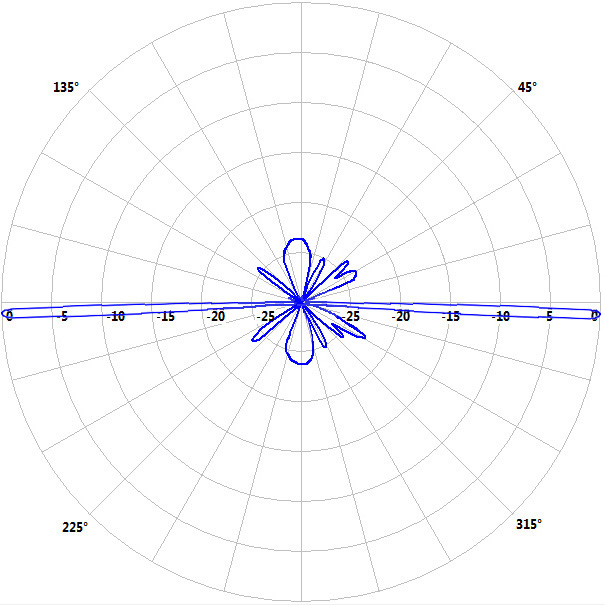

Radiation patterns:


Azimuth	Elevation

Price: 357.00 PLN / pcs Price: 81.14 € / pcs

Add to the basket.
