VECTOR H-PRO 3.5 GHz antenna 16 dBi - 90

Untitled Document

The VECTOR 3.5 GHz sector antenna is designed in wave guide technique, with high 16 dBi gain and large horizontal beam width (-3dBi) . It was designed as a base station antenna. Made of best materials it provides high durability for years. The VECTOR 3.5 GHz antenna allows to build radio cells characterized by wide range and high datarate flow. It has a simple mounting system, which makes installation very easy.

Antenna is designed for use in WiMAX 3.5 GHz band (3300-3800 MHz).

Product details:

Model	BP-35VRH-16
Gain	16 dBi
Operating frequency	3.3 - 3.8 GHz
Vertical beam width	5 degrees
Horizontal beam width	90 degrees
Impedance	50 Ohm
Connector	N (f) socket
VSWR	1.4
Dimensions	740 / 120 / 60 mm
Weight	1.6 kg
Backward radiation	-25 dBi
Polarization	horizontal
Mounting	Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation).

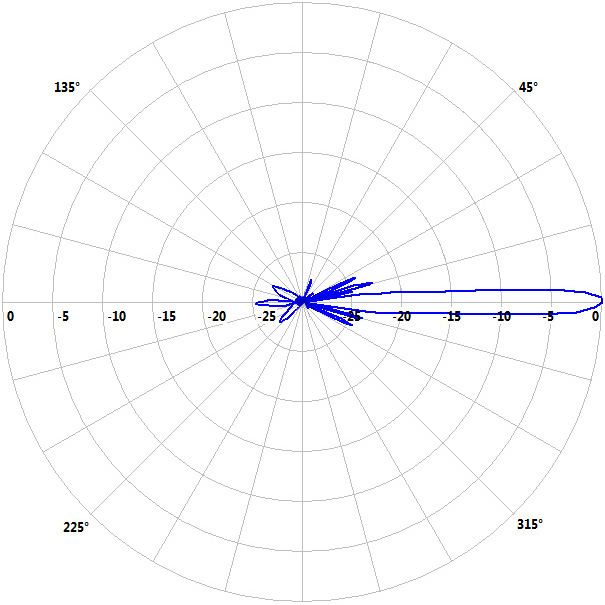

Radiation patterns:


Azimuth	Elevation

VECTOR H-PRO 3.5 GHz antenna 16 dBi - 90

Price: 656.00 PLN / pcs Price: 149.09 € / pcs

Add to the basket.
